네트워크 구성도

1. Network Map

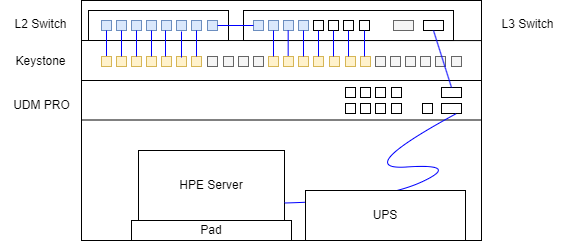

2. Port Map

3. VLAN Config

VLAN Name	VLAN ID	VLAN IP	Client
VLAN10_AP	10	192.168.10.1/24	Mobile Clients (5~6G) : DHCP Reolink CAM (5G) : 192.168.10.100 Apple Homepod (L) (5G) : 192.168.10.200 Apple Homepod (R) (5G) : 192.168.10.201
VLAN20_DHCLOUD	20	192.168.20.1/24	HPE DHCloud Server (10G) : 192.168.20.200 HPE iLO (1G) : 192.168.20.201
VLAN30_STB	30	192.168.30.1/24	Apple TV (1G) : DHCP
VLAN40_HOME	40	192.168.40.1/24	Qnap NAS (1G) : DHCP Chrome Cast (1G) : DHCP Home PC (1G) : DHCP Protect G5 Flex (1G) : DHCP
VLAN50_AUDIO	50	192.168.50.1/24	Linn Akurate DS/3 (100M) : DHCP Roon ROCK Server (1G) : 192.168.50.100 Hifiberry (1G) : DHCP
VLAN60_CLI	60	192.168.60.1/24	TBD

4. Port Forwarding

외부포트	내부포트	IP 주소	프로토콜	서비스명
80	8080	192.168.20.200	TCP	DHCloud (http)
443	8443	192.168.20.200	TCP	DHCloud (https)
55000	55000	192.168.50.100	BOTH	Roon ARC
9000	9000	192.168.10.100	TCP	Reolink CAM
17990	17990	192.168.20.201	TCP	HPE iLO



5. 구성 Tip

  1) VLAN은 L3 Switch에서 구성
  2) L2 Switch를 L3 Switch 하단에 연결 시  L2 Switch는 L3의 해당포트 VLAN에 종속 됨



6. Toolless Mini Rack





Component	Part #	Q'ty	Amount
Toolless Mini Rack	U-Rack-6U-TL	1	$299.00
Keystone Patch Panel	UACC-Rack-Panel-Patch-Blank-24	1	$29.00
Keystone Blank Insert	UACC-Keystone-Blank-Insert	1 (24 pcs)	$19.00
RJ45 Dust Cover	UACC-RJ45-Cover	1 (24 pcs)	$19.00
Panels	UACC-Rack-Panel-Blank-1U	1	$19.00
	UACC-Rack-Panel-Vented-2U	1	$39.00
Patch Cable	0.1m	14	$28.00 ($2x14)
	0.3m	1	$2.20
Keystone	-	1 (20pcs)	$20.00
